Dia 2mm High Tension Galvanized Steel Wire Zinc Coated For Mesh Building

HUBEI FUXING NEW MATERIAL TECHNOLOGY CO.,LTD
Contact Now
    Buy cheap Dia 2mm High Tension Galvanized Steel Wire Zinc Coated For Mesh Building from wholesalers

    Buy cheap Dia 2mm High Tension Galvanized Steel Wire Zinc Coated For Mesh Building from wholesalers
    • Buy cheap Dia 2mm High Tension Galvanized Steel Wire Zinc Coated For Mesh Building from wholesalers

    Dia 2mm High Tension Galvanized Steel Wire Zinc Coated For Mesh Building

    Ask Lasest Price
    Brand Name : FUXING
    Model Number : 2.0mm
    Certification : ISO9001, CE, Lloyd's, ISO14001, OHSAS18001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 3000 Tons per month
    Delivery Time : 20-30 Days
    • Product Details
    • Company Profile

    Dia 2mm High Tension Galvanized Steel Wire Zinc Coated For Mesh Building

    PRODUCTS DESCRIPTION:


    1) HS Code: 72172000
    2) Standard: Both GB/T 4357-89 , DIN& EN are available.
    3) Tensile Strength: 1570 Mpa, 1670Mpa,1770 Mpa,1860Mpa 1960 Mpa etc.
    4) Package: Packing in soft coils or Z2, Z3 packing etc.

    5) Delivery Time: 30 days after the final confimation of order


    How to order:


    1. Size: Diameter of the wire in millimeter or inches

    2. Coating: Bright(ungalvanized), galvanized or Grease.

    3. Packing: In small coils wrapped with oil paper and 2 or 3 big coils packed into one pallet..

    4. Grade of wire: Tensile strength of wires.

    5. Quantity: By number of coils or reels, by length or weight.

    6. Lubrication: Whether lubrication is desired or not, and required lubricant.

    7. Purpose: For which steel wire will be used.

    8. Breaking Load: Minimum or calculated breaking load in tones or pounds.

    9. Remarks: Shipping marks and any other special requirement.


    TECHNOLOGY DETAIL


    Used For Spring Of Indoor Decoration.


    Carbon spring steel wires
    Suitable for using the springs in machineryGB4357-89
    Diameter mmTensile Strength ,MPa
    BCD
    0.401910-23002250-26502600-2990
    0.451860-22602200-26002550-2940
    0.501860-22602200-26002550-2940
    0.551810-22102150-25502500-2890
    0.601760-21602110-25002450-2840
    0.631760-21602110-25002450-2840
    0.701710-21102060-24502450-2840
    0.801710-20602010-24002400-2840
    0.901710-20602010-23502350-2750
    1.001660-20101960-23002300-2690
    1.201620-19601910-22502250-2550
    1.401620-19101860-22102150-2450
    1.601570-18601810-21602100-2400
    1.801520-18101760-21102010-2300
    2.001470-17601710-20101910-2200
    2.201420-17101660-19601810-2110
    2.501420-17101660-19601760-2060
    2.801370-16701620-19101710-2010
    3.001370-16701570-18601710-1960
    3.201320-16201570-18101660-1910
    3.501320-16201570-18101660-1910
    4.001320-16201570-17601620-1860
    4.501320-15701520-17601620-1860

    Tensile strength table of steel wire(Mpa)

    GroupTensile strength
    A11180-1380
    A21380-1580
    A31580-1780
    A41780-1980
    A51980-2180
    A62180-2380

    Diameter tolerance of steel wire

    Diameter of steel wire(mm)Grade of allowable tolerance
    h10h11h12
    Allowable tolerance
    >0.30-0.60±0.01±0.02±0.03
    >0.60-1.00±0.01±0.02±0.03
    >1.00-3.00±0.02±0.03±0.05
    >3.00-5.00±0.02±0.03±0.05

    PRODUCT PHOTO

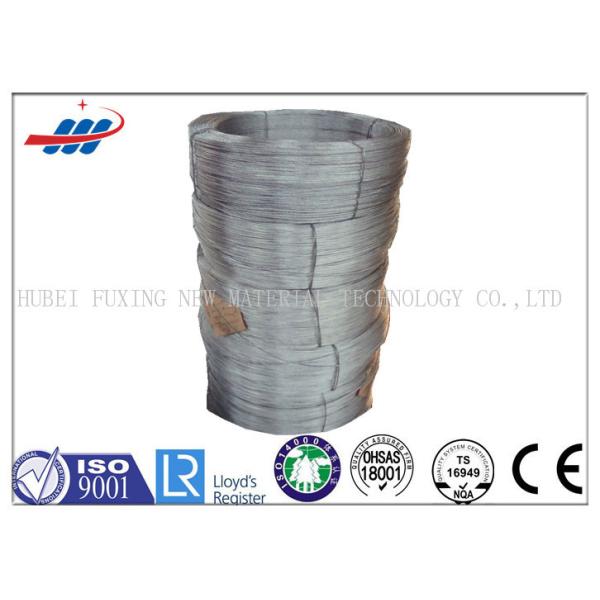

    Quality Dia 2mm High Tension Galvanized Steel Wire Zinc Coated For Mesh Building for sale
